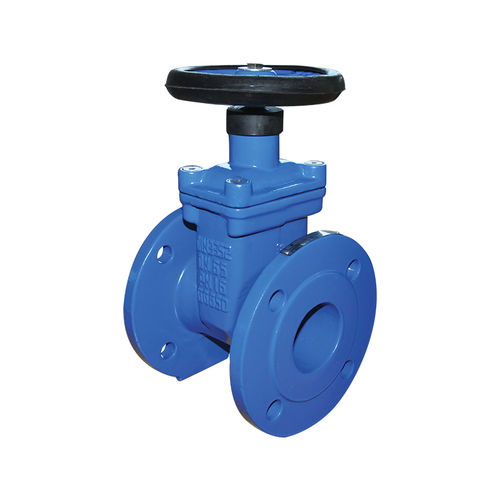

Gate valve 20E900 with handwheelfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Function
- for control
- Media
- for water, for oil, for hydrocarbons
- Body
- soft-seat, iron
- Applications
- industrial, for heating, HVAC
- Other characteristics
- ISO
- DN
Max.: 300 mm
(11.811 in)Min.: 40 mm
(1.575 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 85 °C
(185 °F)Min.: -10 °C
(14 °F)
Description
The valves in series 20E900 are soft seated gate valves, made of ductile iron, manufactured in accordance with severe product norms and relevant norms, and in conformity to EN ISO 9001; they are available with reduced Face to Face dimension (flat body).
These valves are suitable for heating and conditioning (HVAC), water treatment and water distribution, agricultural purposes.
(Please ensure the choice of the corresponding item) NO: for steam, for chocking and regulation of the flow.
Not suitable for fluids containing oils and hydrocarbons.
