Water filter 11.000Y-strainerindustrialfor chemical applications
Add to favorites
Compare this product
Characteristics
- Designed for
- water
- Filtration element
- Y-strainer
- Applications
- industrial, for chemical applications
- Material
- stainless steel, cast iron
- Other characteristics
- vertical, horizontal
- Operating pressure
8 bar, 10 bar, 14 bar, 16 bar
(116.03 psi, 145.038 psi, 203.053 psi, 232.06 psi)- Fluid temperature
Min.: -10 °C
(14 °F)Max.: 100 °C
(212 °F)
Description

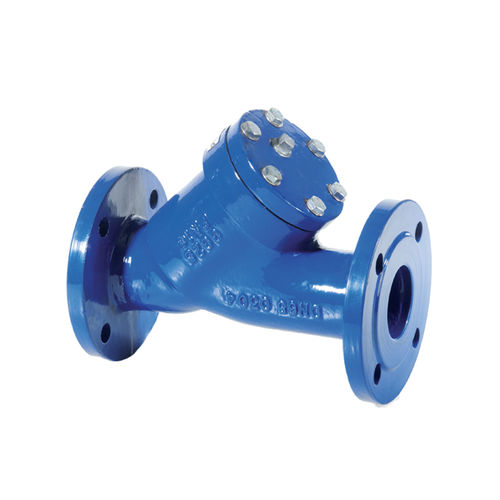

The filters in series 11.000 and 11.000M are flanged Y filters, with a body made of cast iron, which are manufactured in accordance with severe product norms.
They are a prerequisite for protecting pumps, valves, backflow preventers and pressure reducing valves against dirt (rust, welding parts, solids).
Type 11.000M is equipped with a magnetic rod that improves the retention of ferrous particles and impurities.
The filters are suitable for chemical, food and industrial plants.
Also for heating and cooling (HVAC), for the distribution of water, and for agricultural purposes.
YES: for installation in horizontal and vertical positions.
NO: for steam.
