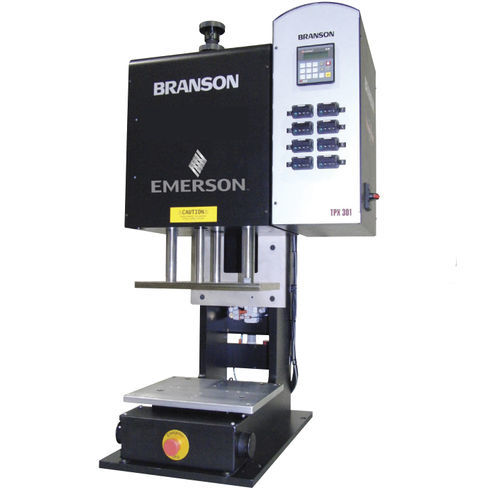

Spot welding machine TPX301thermalautomaticfor plastics
Add to favorites
Compare this product
Characteristics
- Technique
- spot, thermal
- Operational mode
- automatic
- Applications
- for metal, for plastics
- Other characteristics
- pneumatic
Description
Designed for heat staking, thermal insertion, swaging, degating and date stamping
Tooling Platen 356 W x 203 D
Tooling Stroke 102 mm
Throat Depth 241 mm
Pneumatic Requirement Clean (5 micron), dry air, 552 kPa (80 psi)@20 CFM Max
Weight Approx. 250 kg
Weight Actuation
Pneumatic Cooling System
- New improved Unitronics operator interface/controller with 3 digit display and increased I/O
- Discrete, full-function temperature controllers and self-teach mode
- Temperature control monitoring and alarm
- 21" maximum working height without upper and lower tooling
- Two PP Sensor Ports standard
- Full positional feedback for software control of beginning and end of stroke signals
- Shuttle control
- Pressure regulator, gauge and filter, air dump valve with lcok out/tag-out
