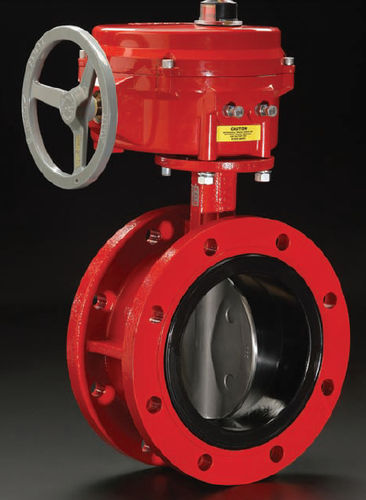

Butterfly valve 3Awith handwheelshut-offfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Media
- for wastewater
- Body
- double-flange
- DN
Min.: 50 mm
(1.969 in)Max.: 500 mm
(19.685 in)- Pressure
250 psi
- Temperature
Min.: -29 °C
(-20 °F)Max.: 204 °C
(399 °F)
Description

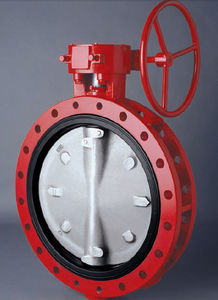

Bray's Series 3A/3AH resilient seated butterfly valve is a Double Flanged design which can be used for dead-end service. A major design advantage of Bray valve product lines is international compatibility. The same valve is compatible with most world flange standards – ASME Class 125/150, BS 10 Tables D and E, BS 4504 NP 10/16, DIN ND 10/16, AS 2129 and JIS10. In addition, the valves are designed to comply with ISO 5752-Table 2 (EN558 Table 13) face-to-face and ISO 5211 actuator mounting flanges. Therefore, one valve design can be used in many different world markets.
