Isolation transformer PSZ series encapsulatedDIN rail mountEN61558
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Mounting
- DIN rail mount
- Norms
- EN61558
- Other characteristics
- protection
- Output power kVA
Min.: 0.1 kVA
(0.135962 hp)Max.: 0.2 kVA
(0.271924 hp)- Primary voltage
Min.: 110 V
Max.: 500 V
- Secondary voltage
Min.: 6 V
Max.: 500 V
- Frequency
50 Hz, 60 Hz
Description

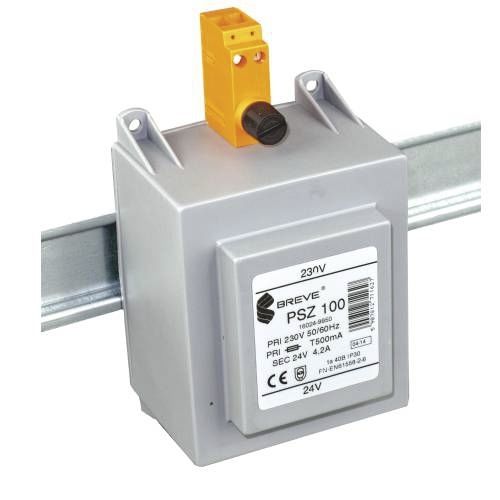

PSZ - TRANSFORMERS FOR DIN RAIL
Encased protection transformers designed mainly for fitting into devices using T-35 bus. Elegant casing, featuring spring bracket significantly facilitates and speeds up attaching. The transformers are made with Class II insulation and protection grade IP30. Maximum ambient temperature 40°C, thermal class of insulation B (130°C). Manufactured in compliance with EN 61558-2-4 and EN 61558-2-6.
Catalogs
No catalogs are available for this product.
See all of BREVE-Tufvassons‘s catalogs
