Toroidal transformer TTZ series powerencapsulatedlow-voltage
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- encapsulated
- Electrical characteristics
- low-voltage
- Other characteristics
- toroidal, protection, electronic
- Output power kVA
Max.: 0.6 kVA
(0.815773 hp)Min.: 0.02 kVA
(0.027192 hp)- Primary voltage
Max.: 500 V
Min.: 110 V
- Secondary voltage
Max.: 230 V
Min.: 12 V
- Frequency
50 Hz, 60 Hz
Description

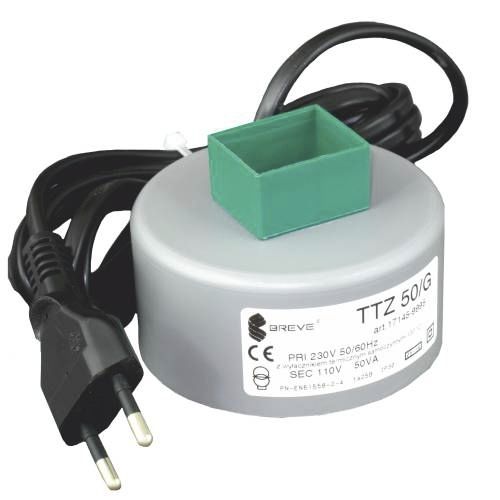

TTZ - TOROIDAL, ENCASED TRANSFORMERS
Toroidal, enclosed transformers mainly suited for building into power supply circuitry of electronic devices and low-voltage lighting systems, featuring small dimensions and weight and low magnetic dispersion.
Encased transformers TTZ/G are designed for powering 110V devices from 230V mains. Thanks to “American” type socket and connection cable fitted with a plug the connection of such devices is quick and convenient.
The transformers are made with Class II insulation and protection grade IP00 (IP30 for G versions). Maximum ambient temperature 40°C, thermal class of insulation B (130°C). Manufactured in compliance with EN 61558-2-4 and EN 61558-2-6.
