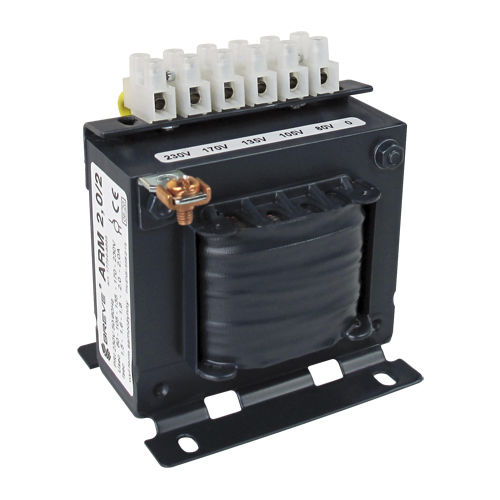

Isolation auto-transformer ARM series cast resincontrolprotection
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- cast resin
- Other characteristics
- control, protection
- Primary voltage
230 V
- Secondary voltage
115 V, 135 V, 155 V, 180 V, 230 V
- Secondary current
Max.: 14 A
Min.: 1.5 A
- Frequency
50 Hz, 60 Hz
Description
ARM - TRANSFORMERS FOR SPEED CONTROLLER
Autotransformer fan speed controllers serve the purpose of airflow control. Designed for installation in ventilation and heating systems. The transformers are made with Class I insulation and protection grade IP00 (for IP30 and IP54, please consider choosing ARW controllers). Maximum ambient temperature 40°C, thermal class of insulation B (130°C). Manufactured in compliance with EN 61558-2-13.
