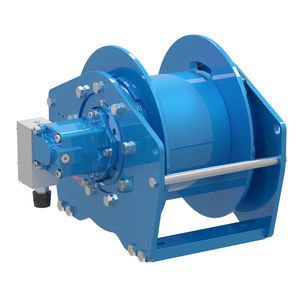

Hoisting winch BWEhydraulicwire ropecustom
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- hoisting
- Other characteristics
- custom, high-speed
- Capacity
Max.: 16,000 kg
(35,274 lb)Min.: 1,000 kg
(2,204.6 lb)- Speed
Max.: 125,000 mm/min
(82 in/s)Min.: 85,000 mm/min
(55.8 in/s)- Cable diameter
Max.: 28 mm
(1.1 in)Min.: 8 mm
(0.31 in)- Cable length
Max.: 357 m
(1171'03" )Min.: 73 m
(239'06" )- Weight
Max.: 1,770 kg
(3,902.182 lb)Min.: 127 kg
(279.987 lb)
Description
The New Winch Evolution series has been designed to have best-in-class performances to meet market needs. Feature high speed motors and device like the Torque Sensor, to improve safety and manouvrability. Suitable for Lifting of Personnel application and designed to work in severe condition, like cold weather and hursh and dust envinroment.
Features
Integrated and plug-in Axial Piston Motor
Smooth and Grooved drum
Torque Sensor
High strength material
Operating Temperature up to -40°C
Suitable for Lifting of Personnel application
DNVGL Type Approval
ABS Approved
