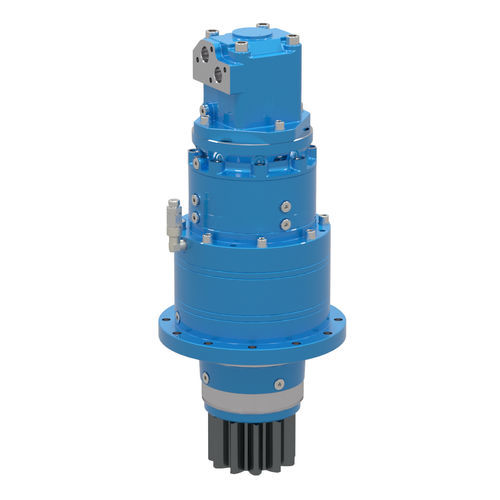

Planetary gear reducer SD seriescoaxialvertical output shaftsplined shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- vertical output shaft, splined shaft
- Torque
- 200 - 500 Nm, 500 - 1000 Nm, > 10 kNm, 1 - 2 kNm, 2 - 5 kNm, 5 - 10 kNm
- Configuration
- compact, flange
- Number of stages
- single-stage, three-stage, two-stage, four-stage
- Applications
- drive
Description
This range of DANA planetary gear units is specifically designed for to drive slewing rings in mobile applications.
Successfully employed since many years on mobile and rought terrain cranes, port equipment machines, truck cranes, utility and forestry vehcles.
Their advantages are: compact dimensions, high performance, simple mounting, operating reliability, tailored design with integrated hydraulic motor and valves.
Features
Compact design
Stage compositions from 1 up to 4 reduction stages
Customizable output support front flange fixing solution
Integral output pinions as well as splined shaft with loose pinions
Direct input for Dana hydraulic motors
Spring Applied Hydraulic Released (SAHR) brakes
Possibility to install hydraulic and electric motors
No SAHR version for electric driven versions
