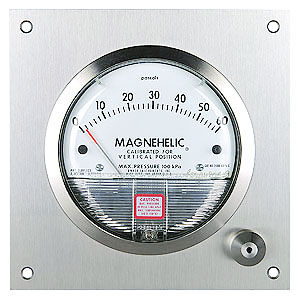

Differential pressure gauge FM2000/2300

analogbuilt-instainless steel

The flush-mounted MAGNEHELIC differential pressure gauges in the FM2000/FM2300 series with front panel and bezel made of stainless steel are preferably used in the pharmaceutical and chemical industry, in medical equipment as well as in industrial applications and system engineering. They are designed for flush integration in cleanroom panels or instrument panels. As the pressure gauges operate without any liquids, they operate reliably, resist pressure shocks and do not require routine maintenance. The analogue display of the gauge does not require any electrical power supply. Note: Depending on the field of application, the differential pressure gauges can be supplied with special (optional) scales such as scale reading in mbar, mm w.c., red-green to highlight and emphasize critical pressures, m/s, m³/h, 0 – 100 % and other units of measurement. Also available are factory and calibration certificates produced by DKDapproved and certified testing instruments in compliance with DIN 10204. Note! Important! Please allow for sufficient space behind the front plate for any cables and pressure hoses.
