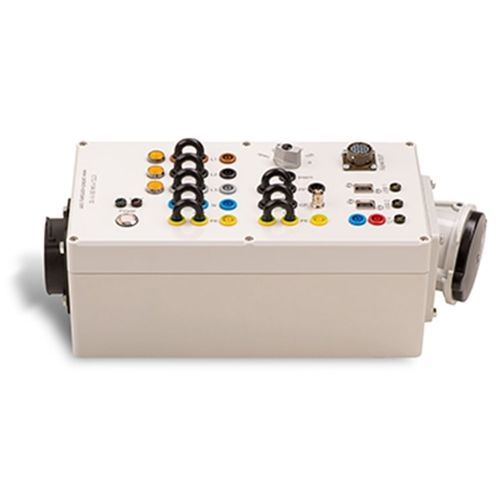

Voltage data acquisition system EVspy 4 plug-inin-vehiclefor high-voltage measurements
Add to favorites
Compare this product
Characteristics
- Measured physical value
- voltage
- Mounting
- plug-in, in-vehicle
- Applications
- for high-voltage measurements
- Options and accessories
- USB
Description
This measuring device is used for signal acquisition and manipulation in AC networks between wallboxes and plug-in vehicles:
Voltage measurement and output using reference voltage on three channels (L1, L2, L3)
Current measurement and output using reference voltage on four channels (L1, L2, L3, N)
Galvanically decoupled measurement outputs
High bandwidth (100kHz @ -3dB) for dynamic signal changes
Active signal acquisition and conditioning for CP (Control Pilot)
Adjustable value for PP (Plug Present)
Internal energy storage for autonomous measuring operation, rechargeable via USB and 12V supply
Double insulation and tested up to 1000V / CATII
