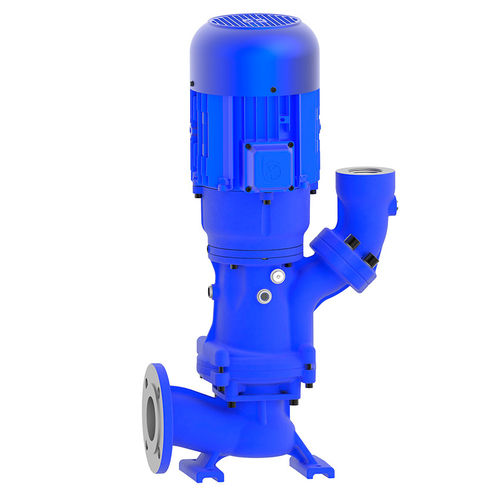

Vertical pump SBG801...1101-V series

centrifugalfor coolantfor lubricants

Vertical End Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with double mechanical seal. This pump series is designed for vertical installations next to a tank and for pumping highly air entrained coolant and cutting oils, as they occur in high speed grinding applications. The SBG pumps are equipped with the user-friendly 45 degree flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G ¼. For more information see mechanical features within the technical information section. All types specified are also available as multistage pumps e.g. SBG802-V, SBG1103-V. Applications Types of fluid - - coolants cooling/cutting oils grinding oils - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...80° C Construction Pump body - - cast iron Cover - - cast iron Impeller axial - - cast steel Impeller radial - - cast steel Shaft - - steel Mechanical seal - - SiC - - Noise level - - 72 dBA (SBG801-V...SBG1101-V)
