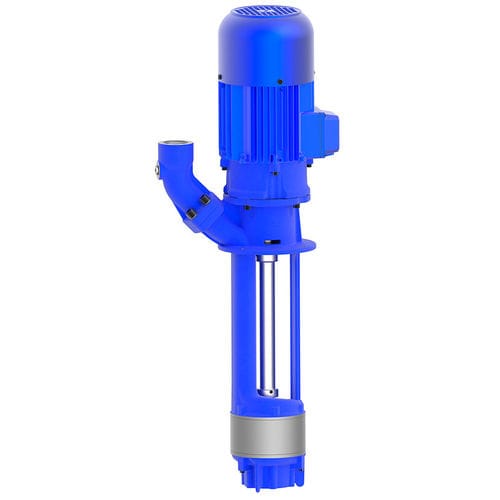

Coolant pump TGL/SGL331...333 seriesfor lubricantselectricsemi-submersible
Add to favorites
Compare this product
Characteristics
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Technology
- centrifugal
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- cooling, for emulsions
- Material
- steel
- Fluid specification
- cutting fluid
- Other characteristics
- high-speed, multi-stage, suction, flange, vertical-mount, slurp, grinding oil
- Flow
Max.: 380 l/min
(100.38538 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 32 m
(104'11" )Min.: 0 m
(0'00" )- Power
Max.: 2.55 kW
(3.47 hp)Min.: 0.85 kW
(1.16 hp)
Description
Quick Suctioning Immersion Pumps series TGL/SGL equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (grinding oils) as they occur in high-speed grinding.
The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet.
The SGL serie offers a (SAE) flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid - - coolants
cooling/cutting oils
grinding oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...80° C
Construction
Pump body - - cast iron
Cover - - cast iron
Impeller axial - - cast steel
Impeller radial - - cast steel
Shaft - - steel
