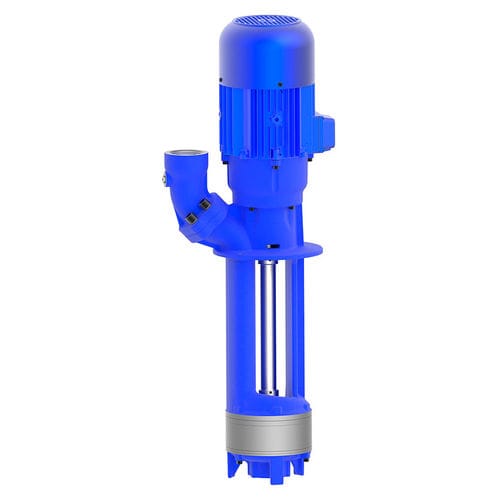

Centrifugal pump SGL801...804 seriesfor coolantfor lubricantselectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- cooling, for emulsions
- Material
- steel
- Fluid specification
- cutting fluid, for refrigerant fluids
- Other characteristics
- multi-stage, suction, high-speed, flange, vertical-mount, slurp, grinding oil
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 800 l/min
(211.33764 us gal/min)- Head
Min.: 0 m
(0'00" )Max.: 85 m
(278'10" )- Power
Min.: 2.6 kW
(3.54 hp)Max.: 15 kW
(20.39 hp)
Description
Quick Suctioning Immersion Pumps
series SGL equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (grinding oils) as they occur in high-speed grinding.
The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet.
The SGL serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid - - coolants
cooling/cutting oils
grinding oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...80° C
- Construction
Pump body - - cast iron
Cover - - cast iron
Impeller axial - - cast steel
Impeller radial - - cast steel
Shaft - - steel
