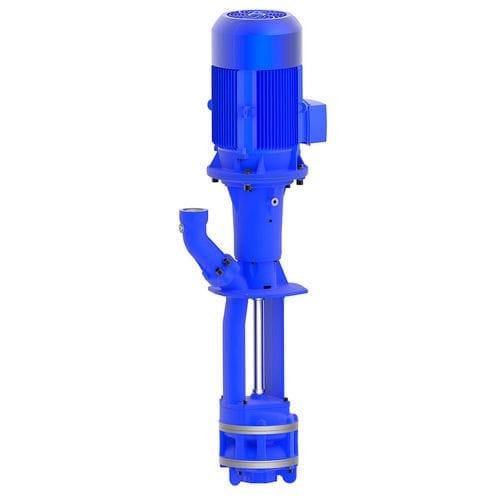

Coolant pump SGL1400...2200 seriesfor lubricantselectricsemi-submersible
Add to favorites
Compare this product
Characteristics
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Technology
- centrifugal
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- cooling, for emulsions
- Material
- steel
- Fluid specification
- cutting fluid
- Other characteristics
- high-speed, multi-stage, suction, flange, vertical-mount, slurp, grinding oil
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 2,600 l/min
(686.84734 us gal/min)- Head
Min.: 0 m
(0'00" )Max.: 88 m
(288'08" )- Power
Min.: 9 kW
(12.24 hp)Max.: 25.3 kW
(34.4 hp)
Description
Quick Suctioning Immersion Pumps series SGL equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (grinding oils) as they occur in high-speed grinding.
The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet.
The SGL serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections
Applications
Types of fluid - - coolants
cooling/cutting oils
grinding oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...80° C
Construction
Pump body - - cast iron
Cover - - cast iron
Impeller axial - - cast steel
Impeller radial - - cast steel
Shaft - - steel
