Stainless steel pump TVG seriescentrifugalwaterfor solvents
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, for solvents, for coolant, for bases
- Operation
- electric
- Priming
- semi-submersible
- Mobility
- stationary
- Domain
- industrial
- Applications
- washing, cleaning, for industrial applications, for emulsions
- Material
- stainless steel
- Fluid specification
- for refrigerant fluids
- Voltage
- 380 V, 460 V
- Protection level
- immersion
- Other characteristics
- compact, multi-stage, low-pressure
- Flow
780 l/min, 1,000 l/min
(206.0542 us gal/min, 264.17205 us gal/min)- Head
33 m, 50 m
(108'03" , 164'00" )- Power
Min.: 1.7 kW
(2.31 hp)Max.: 7.48 kW
(10.17 hp)- Height
Min.: 325 mm
(12.8 in)Max.: 878 mm
(34.57 in)- Weight
Min.: 47 kg
(103.62 lb)Max.: 115 kg
(253.53 lb)
Description

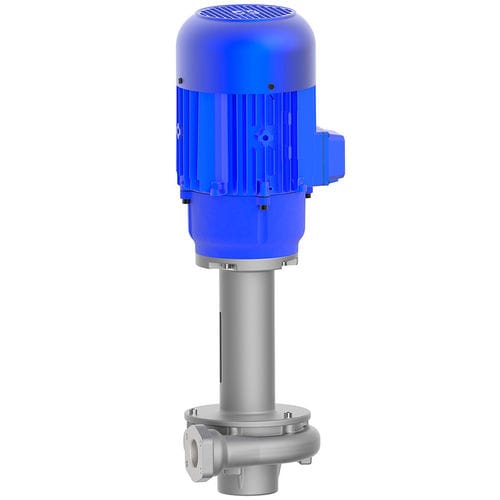

Stainless Steel Immersion Pumps
are centrifugal pumps of compact design with the impeller mounted directly onto the extended motor shaft. The TVG pump series maximizes hydraulic efficiencies with its closed impeller design. These pump series are both particularly well suited for industrial washing applications of metal parts.
Complete pump and plate assemblies, including discharge pipe and mounting plate are available upon request.
