Centrifugal pump TB series
for coolantfor lubricantswith electric motor

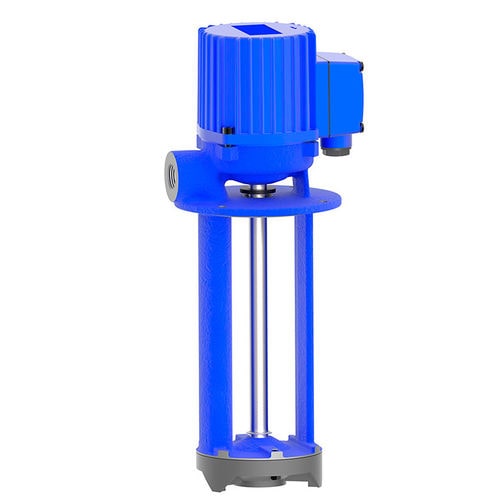

Centrifugal pump - TB series - Brinkmann Pumpen - for coolant / for lubricants / with electric motor
Centrifugal pump - TB series - Brinkmann Pumpen - for coolant / for lubricants / with electric motor
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
for coolant, for lubricants
Operation
with electric motor
Priming
semi-submersible
Mobility
stationary
Domain
industrial, for the metallurgical industry, for machine tools
Applications
cooling, for emulsions, container
Material
cast iron
Fluid specification
cutting fluid, for refrigerant fluids
Voltage
380 V, 460 V
Other characteristics
single-stage, small, mounting flange, low-pressure, radial, top-mounted
Flow

16 l/min, 30 l/min, 50 l/min, 75 l/min, 100 l/min
(4.22675 us gal/min, 7.92516 us gal/min, 13.2086 us gal/min, 19.8129 us gal/min, 26.41721 us gal/min)

Head

Min.: 0 m
(0'00" )

Max.: 2 m
(6'06" )

Power

0.07 kW, 0.1 kW, 0.12 kW, 0.21 kW, 0.24 kW
(0.1 hp, 0.14 hp, 0.16 hp, 0.29 hp, 0.33 hp)

Weight

Min.: 4.3 kg
(9.48 lb)

Max.: 7.5 kg
(16.53 lb)

Description

Immersion Pumps are plain centrifugal pumps with the impeller fitted on the driving shaft extension. They are mounted on top of the container, the pump extension being immersed in the coolant. The dimensions are based on standard specification EN 12157. The maximum coolant level must stay a few mm/inches below the mounting flange. Applications Types of fluid - - coolants cooling/cutting oils other fluids on request - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...60° C Construction Pump body - - cast iron Cover - - POM Impeller - - POM Shaft - - steel Optional: - - Cover - - cast iron cast iron with thread Impeller - - brass cast iron Optional: These models are also available with single phase motor. - - Noise level - - 45 dBA (TB16...TB100)
