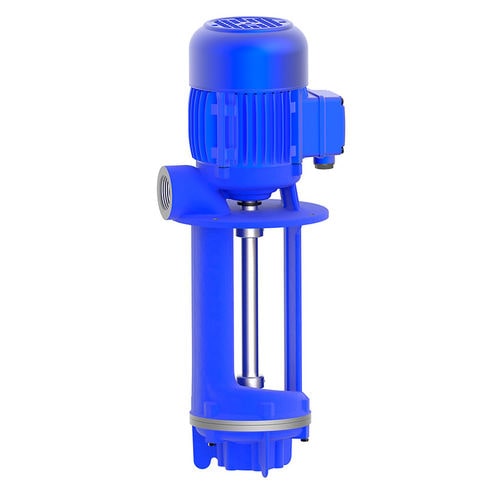

Coolant pump TL50...TAL200 seriesfor lubricantselectricsemi-submersible
Add to favorites
Compare this product
Characteristics
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Technology
- centrifugal
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- suction, cooling
- Material
- steel
- Fluid specification
- cutting fluid
- Other characteristics
- slurp
- Flow
Max.: 280 l/min
(73.96817 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 8.5 m
(27'10" )Min.: 0 m
(0'00" )- Power
0.22 kW, 0.55 kW
(0.3 hp, 0.75 hp)
Description
Quick suctioning immersion pumps equipped with the patented "BRINKMANN's Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (emulsions resp. cooling/cutting oils) as they occur in heavy cutting when turning, milling or grinding.
The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet.
Applications
Types of fluid - - coolants
cooling/cutting oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...80° C
Construction
Pump body - - cast iron
Cover - - cast iron
Impeller axial - - cast steel
Impeller radial - - brass
Shaft - - steel
Optional: - -
Impeller radial - - cast steel
