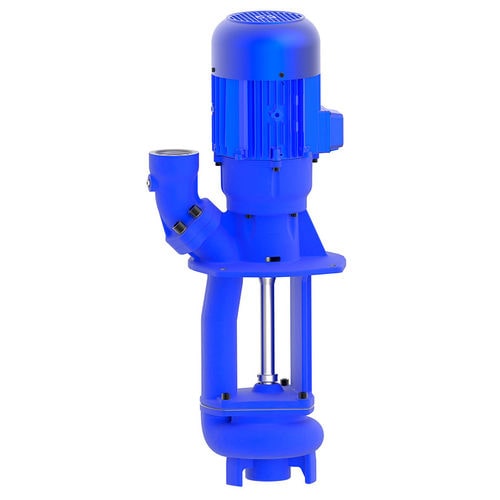

Vortex pump SFT450...1400 seriesfor coolantfor lubricantselectric
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Domain
- industrial, for machine tools
- Applications
- for emulsions, lift
- Material
- steel
- Fluid specification
- cutting fluid
- Other characteristics
- compact, flange, vertical
- Flow
Max.: 1,350 l/min
(356.63227 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 28 m
(91'10" )Min.: 0 m
(0'00" )- Power
Max.: 12.6 kW
(17.13 hp)Min.: 2.6 kW
(3.54 hp)
Description
Free Flow-Immersion Pumps
SFT450...1400
Free Flow-Immersion Pumps
series SFT are designed to lift coolant for filtering. Coarse shreds can be transported together with liquids.
The SFT serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid - - coolants -
Max. chip to coolant ratio by weight: - - 1.5 % -
Chip material: - - Aluminium, steel, coloured steels -
Chip geometry: - - Flow chips up until 80 mm long -
Kinematic viscosity - - ...30 mm²/s (30 cSt)
higher viscosity upon request -
Pumping temperature - - 0...60° C
- Construction
Pump body - - cast iron
Cover - - special cast iron
Impeller - - cast steel
Shaft - - steel
