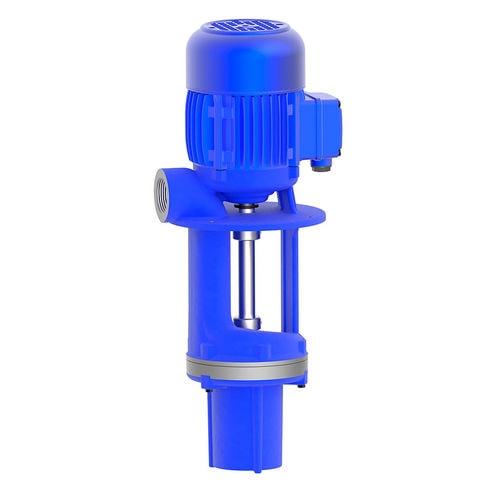

Centrifugal pump TAA seriesfor coolantfor lubricantselectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- suction, lifting, cooling, for emulsions, lift
- Fluid specification
- cutting fluid
- Other characteristics
- single-stage
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 440 l/min
(116.2357 us gal/min)- Head
Min.: 0 m
(0'00" )Max.: 9 m
(29'06" )- Power
Min.: 0.42 kW
(0.57 hp)Max.: 1.06 kW
(1.44 hp)
Description
Lifting pumps
series TAA gently pump foam-sensitive cooling lubricants (emulsions or cooling and cutting oils) or highly inflated cooling lubricants such as occur with a high degree of machining in lathing, milling or grinding
Applications
Types of fluid - - coolants
cooling/cutting oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...60° C
Construction
Pump body - - cast iron
Cover - - cast iron
Impellers - - cast iron
Shaft - - steel
- -
Noise level - - 62 dBA (TAA140...TAA280)
