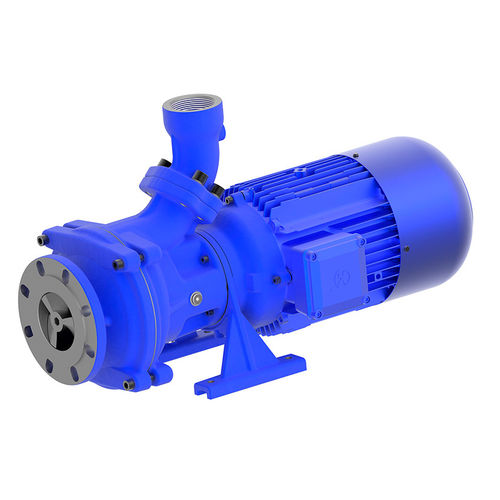

Coolant pump SBG1400...1700 series

for lubricantselectriccentrifugal

Horizontal End-Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with a single mechanical seal. Upon request a second mechanical seal is available to allow for dry-running (-GD). This pump series is designed for horizontal installations next to a tank and for pumping highly air entrained coolant and cutting oils, as they occur in high speed grinding applications. The SBG pumps are equipped with the user-friendly 45 degree flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G 1/4. Applications Types of fluid - - coolants cooling/cutting oils grinding oils - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...80° C - Construction Pump body - - cast iron Cover - - cast iron Impeller axial - - cast steel Impeller radial - - cast steel Shaft - - steel Mechanical seal - - SiC - - Noise level - - 74 dBA (SBG1400...SBG1700)
