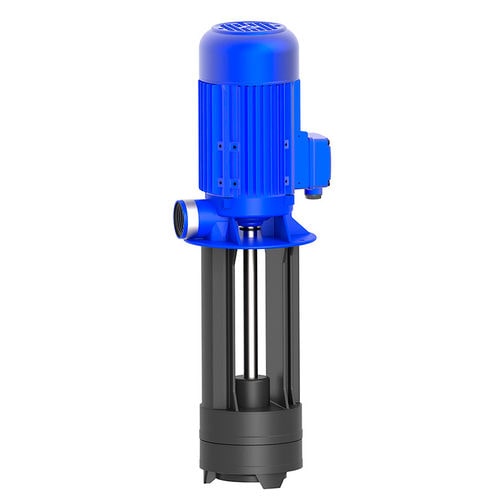

Plastic pump KTF151...303/KTB200 seriescentrifugalfor hot waterfor industrial water
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for hot water, for industrial water, for cooling water, for chemicals
- Operation
- electric
- Priming
- semi-submersible
- Mobility
- stationary
- Domain
- for the beverage industry, for the printing industry
- Applications
- for cooling systems
- Material
- plastic
- Voltage
- 380 V, 460 V
- Protection level
- immersion
- Other characteristics
- compact, multi-stage
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 390 l/min
(103.0271 us gal/min)- Head
Min.: 0 m
(0'00" )Max.: 42 m
(137'09" )- Power
Min.: 0.63 kW
(0.86 hp)Max.: 2.94 kW
(4 hp)- Height
264 mm, 291 mm, 346 mm
(10.39 in, 11.46 in, 13.62 in)- Weight
Min.: 8.7 kg
(19.18 lb)Max.: 26.5 kg
(58.42 lb)
Description
Immersion Pumps in Plastics
series KTF and KTB are suitable for various water supply problems.
These pumps are also suitable for a wide range of chemical liquids.
No shaft seal is required, due to the construction.
Applications
Types of fluid - - Industry water; warm, cold, with and without chemical admixtures, distilled, de-ionnized -
Kinematic viscosity - - ...12 mm²/s (12 cSt) -
Pumping temperature - - -10...+60° C
Construction
Pump body - - POM
Cover - - PP
Impellers - - PPS
Shaft - - 1.4104
Optional: - -
Shaft - - CrMo
- -
Noise level - - 60 dBA (KTF151...KTF152)
65 dBA (KTF153)
60 dBA (KTF301)
65 dBA (KTF302...KTF303)
60 dBA (KTB200)
