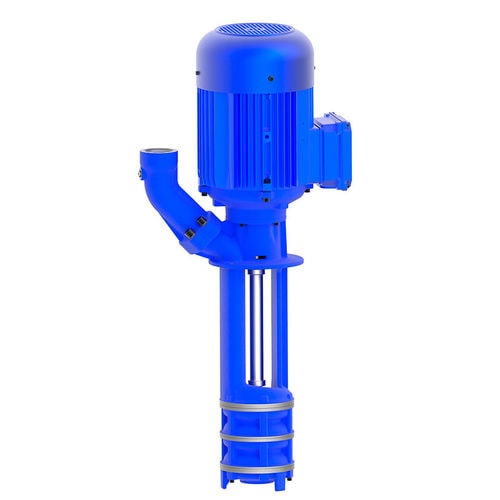

Coolant pump STA1301...1003 seriesfor lubricantselectricsemi-submersible
Add to favorites
Compare this product
Characteristics
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- cooling, for emulsions
- Material
- cast iron, steel, cast steel
- Fluid specification
- cutting fluid, for refrigerant fluids
- Voltage
- 380 V, 460 V
- Other characteristics
- suction, multi-stage, with flange, vertical, tank-mounted
- Flow
Max.: 1,600 l/min
(422.67528 us gal/min)900 l/min
(237.75485 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 65 m
(213'03" )12 m, 27 m, 40 m
(39'04" , 88'06" , 131'02" )Min.: 0 m
(0'00" )- Power
Max.: 12.6 kW
(17.13 hp)Min.: 5 kW
(6.8 hp)- Height
533 mm, 612 mm, 620 mm
(20.98 in, 24.09 in, 24.41 in)- Weight
Max.: 174 kg
(383.6 lb)Min.: 68 kg
(149.91 lb)
Description
Immersion Pumps
are plain centrifugal pumps with the impeller fitted on the driving shaft extension. They are mounted on top of the container, the pump extension being immersed in the coolant.
The maximum coolant level must stay a few mm/inches below the mounting flange.
The STA serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid - - coolants
cooling/cutting oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...80° C
higher temperatures upon request
Construction
Pump body - - cast iron
Cover - - cast iron
Impellers - - cast steel
Shaft - - steel
Optional: - -
Suction cover - - with threaded inlet
Other materials - - on request
- -
Noise level - - 71 dBA (STA1301)
74 dBA (STA1302...STA1303)
