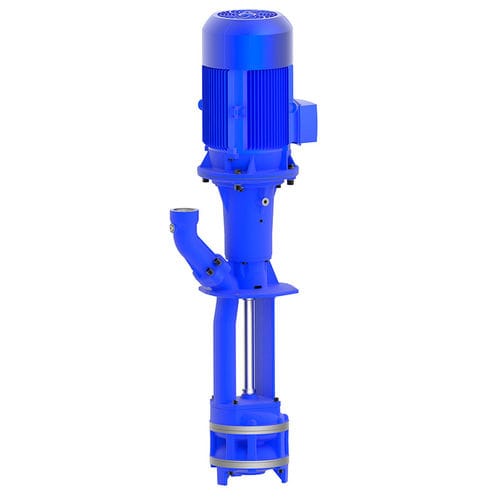

Centrifugal pump STA1600...2500 seriesfor coolantfor lubricantselectric
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Mobility
- stationary
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- cooling, for emulsions
- Material
- cast iron, steel, cast steel
- Fluid specification
- cutting fluid, for refrigerant fluids
- Voltage
- 380 V, 460 V
- Other characteristics
- multi-stage, mounting flange, vertical-mount
- Flow
1,300 l/min, 1,600 l/min, 2,200 l/min
(343.42367 us gal/min, 422.67528 us gal/min, 581.17852 us gal/min)Max.: 2,550 l/min
(673.63873 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
15 m, 20 m, 37 m, 47 m
(49'02" , 65'07" , 121'04" , 154'02" )Max.: 90 m
(295'03" )Min.: 0 m
(0'00" )- Power
Max.: 21.3 kW
(28.96 hp)Min.: 9 kW
(12.24 hp)- Height
612 mm, 620 mm, 974 mm, 978 mm
(24.09 in, 24.41 in, 38.35 in, 38.5 in)- Weight
Max.: 230 kg
(507.06 lb)Min.: 133 kg
(293.21 lb)
Description
Immersion Pumps
are plain centrifugal pumps with the impeller fitted on the driving shaft extension. They are mounted on top of the container, the pump extension being immersed in the coolant.
The maximum coolant level must stay a few mm/inches below the mounting flange.
The STA serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid - - coolants
cooling/cutting oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...80° C
Construction
Pump body - - cast iron
Cover - - cast iron
Impeller - - cast steel
Shaft - - steel
Other materials - - on request
- -
Noise level - - 74 dBA (STA1600...STA2000)
78 dBA (STA1602...STA2500)
