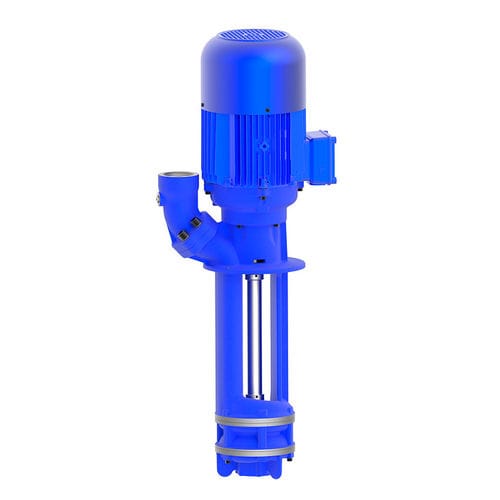

Centrifugal pump SAL901...904 series
for coolantfor lubricantselectric

Centrifugal pump - SAL901...904 series - Brinkmann Pumpen - for coolant / for lubricants / electric
Centrifugal pump - SAL901...904 series - Brinkmann Pumpen - for coolant / for lubricants / electric
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
for coolant, for lubricants
Operation
electric
Priming
semi-submersible
Domain
industrial, for the metallurgical industry, for machine tools
Applications
suction, cooling, for emulsions
Material
steel
Fluid specification
cutting fluid, for refrigerant fluids
Other characteristics
multi-stage, flange, vertical-mount, slurp
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 1,000 l/min
(264.17205 us gal/min)

Head

Min.: 0 m
(0'00" )

Max.: 80 m
(262'05" )

Power

Min.: 3.3 kW
(4.49 hp)

Max.: 12.6 kW
(17.13 hp)

Description

Quick suctioning immersion pumps equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (emulsions resp. cooling/cutting oils) as they occur in heavy cutting when turning, milling or grinding. The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet. The SAL serie offers a flange with pressure gauge connection port. The flange can be rotated for either horizontal or vertical pipe connections. Applications Types of fluid - - coolants cooling/cutting oils - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...80° C Construction Pump body - - cast iron Cover - - cast iron Impeller axial - - cast steel Impeller radial - - cast steel Shaft - - steel
