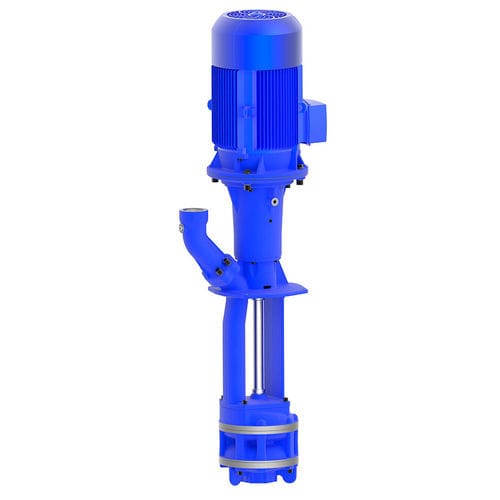

Coolant pump SAL1600...2500 seriesfor lubricantselectricsemi-submersible
Add to favorites
Compare this product
Characteristics
- Fluid
- for coolant, for lubricants
- Operation
- electric
- Priming
- semi-submersible
- Technology
- centrifugal
- Domain
- industrial, for the metallurgical industry, for machine tools
- Applications
- cooling, for emulsions
- Material
- steel
- Fluid specification
- cutting fluid, for refrigerant fluids
- Other characteristics
- multi-stage, suction, flange, vertical-mount, slurp
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 2,600 l/min
(686.84734 us gal/min)- Head
Min.: 0 m
(0'00" )Max.: 92 m
(301'10" )- Power
Min.: 9 kW
(12.24 hp)Max.: 25.3 kW
(34.4 hp)
Description
Quick suctioning immersion pumps equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (emulsions resp. cooling/cutting oils) as they occur in heavy cutting when turning, milling or grinding.
The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet.
The SAL serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
Applications
Types of fluid - - coolants
cooling/cutting oils -
Kinematic viscosity - - ...45 mm²/s (45 cSt) -
Pumping temperature - - 0...80° C
-
Construction
Pump body - - cast iron
Cover - - cast iron
Impeller axial - - cast steel
Impeller radial - - cast steel
Shaft - - steel
