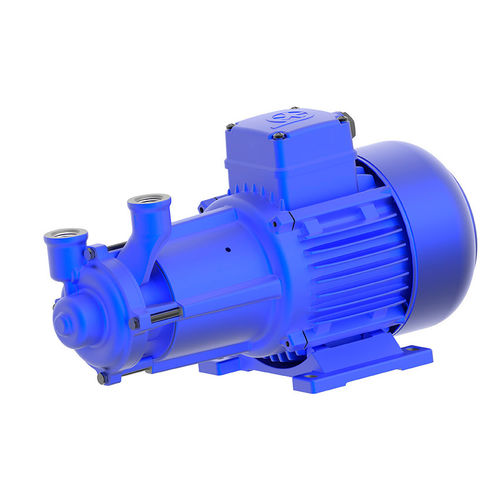

Centrifugal pump BMK seriesfor industrial watermagnetic-drivestationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for industrial water
- Operation
- magnetic-drive
- Mobility
- stationary
- Domain
- industrial
- Voltage
- 380 V, 460 V
- Other characteristics
- compact, single-stage, horizontal mount, miniature, small-size, vertical-mount
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 55 l/min
(14.52946 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 7 bar
(101.526 psi)- Head
Min.: 0 m
(0'00" )Max.: 58 m
(190'03" )- Power
0.63 kW, 0.73 kW, 1.1 kW, 1.27 kW
(0.86 hp, 0.99 hp, 1.5 hp, 1.73 hp)- Fluid temperature
160 °C
(320 °F)- Height
374 mm, 430 mm
(14.72 in, 16.93 in)- Weight
10.8 kg, 14 kg
(23.81 lb, 30.86 lb)
Description
Miniature Centrifugal Pumps
of the BMK series have been desined for clean watercircuits of up to 160 degree C fluid temperature and up to 7 bar of system pressure.
The pumps are equipped with a magnetic coupling. The pumps can be mounted vertically or horizontally. The specific design allows the pumps to operate wear poor.
Applications
Types of fluid - - Industry water up to 160° C at 7 bar system-pressure
Construction
Pump body - - CrNi-steel
Cover - - CrNi-steel
Impeller - - CrNi-steel
Shaft - - Ceramic
Gasket - - Split-case
- -
Noise level - - 65 dBA (BMK3)
67 dBA (BMK4)
