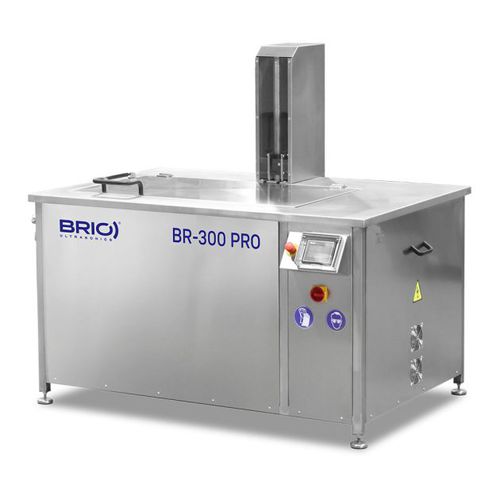

Ultrasonic cleaning machine BR-300 PRO

automaticmanualparts

Exterior dimensions of the machine - 1.680×1.130×1.720 mm Interior dimensions of the vat - 900x600x640 mm Useful measurements of the load grid - 870x525x385 mm Height of the worktop - 970 mm Capacity of the vat - 346 L Power of the ultrasonic generator - 2000 W (4800 W p-p) Ultrasonic working frequency - 28/40 kHz Heating element - 7.5 kW Elevator with parts grid. Max. load capacity - 250 kg Auxiliary vat capacity - 36 L Intuitive 4.3 inch color touch panel. To control and program the cleaning cycle. Manual and automatic mode. Includes time slot programming. System with PLC and temperature module. Oil Push System. Exclusive system for oil removal to the auxiliary vat by laminar sweep. It extends the useful life of the fluid against saturation. Elevator sway. Up and down movement for the separation of the dirt released on the surface of the parts. Manual cover with thermal insulation as an option. Stainless steel construction AISI 304/316. Automatic ultrasonic cleaning equipment of useful capacity. Exclusive BRIO technology three times more efficient than conventional systems. PRO Series includes lift with load grid for handling the parts without effort, sway system for separating the dirt, OPS (Oil Push System) for oil removal, an intuitive touch screen and much more. With all the advantages of BRIO ultrasonic cleaning technology: ecological, with superior water and energy savings
