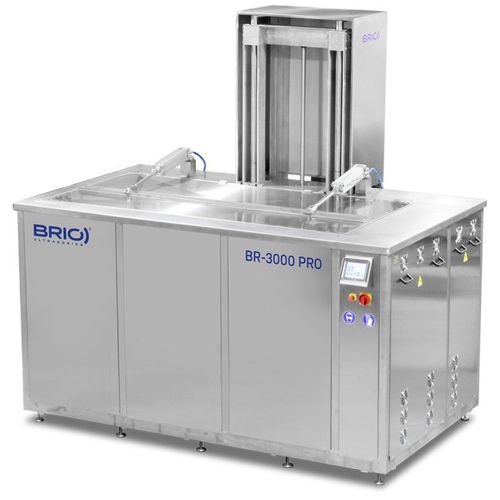

Ultrasonic cleaning machine BR-3000 PRO

automaticmanualindustrial

Exterior dimensions of the machine - 3.530×2.275×3.164 mm Interior dimensions of the vat - 2.120×1.250×1.425 mm Useful measurements of the load grid - 2.070×1.190×1.135 mm Height of the worktop - 1.760 mm Capacity of the vat - 3.776 L Power of the ultrasonic generator - 14000 W (28000 W p-p) Ultrasonic working frequency - 28/40 kHz Heating element - 36 kW Elevator with parts grid. Max. load capacity - 1500 kg Auxiliary vat capacity - 292 L Intuitive 7 inch color touch panel. To control and program the cleaning cycle. Manual and automatic mode. Includes time slot programming. System with PLC and temperature module. Oil Push System. Exclusive system for oil removal to the auxiliary vat by laminar sweep. It extends the useful life of the fluid against saturation. Elevator sway. Up and down movement for the separation of the dirt released on the surface of the parts. Stainless steel construction AISI 304/316 Automatic ultrasonic cleaning equipment of useful capacity. Exclusive BRIO technology three times more efficient than conventional systems. PRO Series includes lift with load grid for handling the parts without effort, sway system for separating the dirt, OPS (Oil Push System) for oil removal, automatic lid, an intuitive touch screen and much more. With all the advantages of BRIO ultrasonic cleaning technology: ecological, with superior water and energy savings; optimal in costs, with triple the efficiency of the rest of ultrasound systems; robust, with construction in AISI 304/316; with great durability and lower maintenance. All this saving time and labor by 60% -80% compared to traditional cleaning systems in all industrial sectors.
