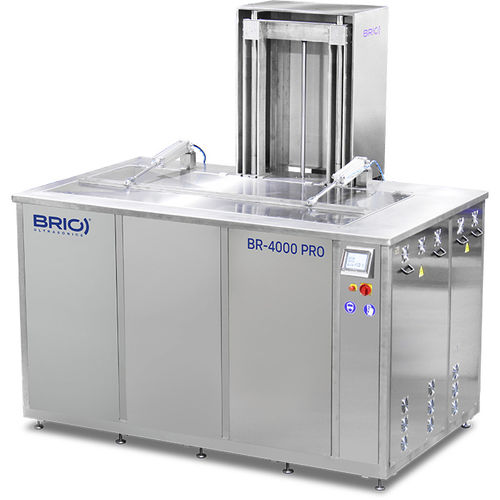

Ultrasonic cleaning machine BR-4000 PRO

automaticmanualparts

Exterior dimensions of the machine - 3.530×2.380×3.407 mm Interior dimensions of the vat - 2.120×1.445×1.523 mm Useful measurements of the load grid - 2.070×1.290×1.215 mm Height of the worktop - 1.860 mm Capacity of the vat - 4665 L Power of the ultrasonic generator - 16000 W (40000 W p-p) Ultrasonic working frequency - 28/40 kHz Heating element - 36 kW Elevator with parts grid. Max. load capacity - 1.800 kg Auxiliary vat capacity - 338 L Intuitive 7 inch color touch panel. To control and program the cleaning cycle. Manual and automatic mode. Includes time slot programming. System with PLC and temperature module. Oil Push System. Exclusive system for oil removal to the auxiliary vat by laminar sweep. It extends the useful life of the fluid against saturation. Elevator sway. Up and down movement for the separation of the dirt released on the surface of the parts. Automatic lid with thermal insulation as an option. Stainless steel construction AISI 304/316.
