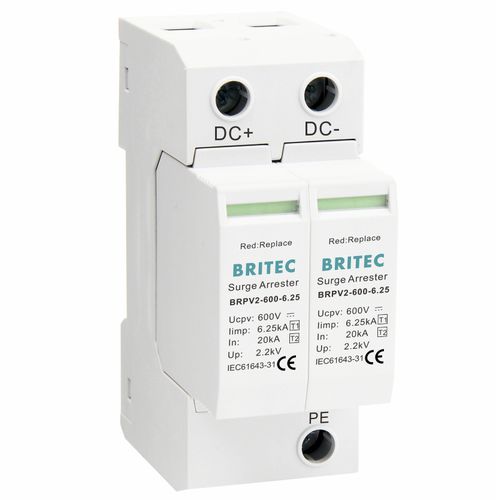

Type 2 surge arrester BRPV2 600class IIfor power suppliesremote signaling
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- for power supplies, remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, for photovoltaïc installations, anti-surge, DC power
- Other characteristics
- with fault indication, varistor, modular, low-voltage, DC, DIN rail, plug-in, screw-in, fast-response, thermoplastic
- Voltage
600 V
- Primary current
Max.: 40,000 A
Min.: 20,000 A
Description
Features:
· 2 modular.
· Status indication.
· PV voltage up to 600Vdc.
· Designed for 35 mm DIN rails.
· With remote indication contact.
· According to type 2 / class II EN61643-11 and EN50539-11.
Application：
· For Photovoltaic applications to prevent the risks linked to lightning
· Applied to electrical systems to provide a discharge path to earth to save those systems’ components from being exposed to the high-voltage transients caused by the direct or indirect effects of lightning or power system anomalies
Advantage：
· Easy installation and access for a best maintenance.
· High operational reliability
· Optical status indicator via LED
· Local and remote status indication
