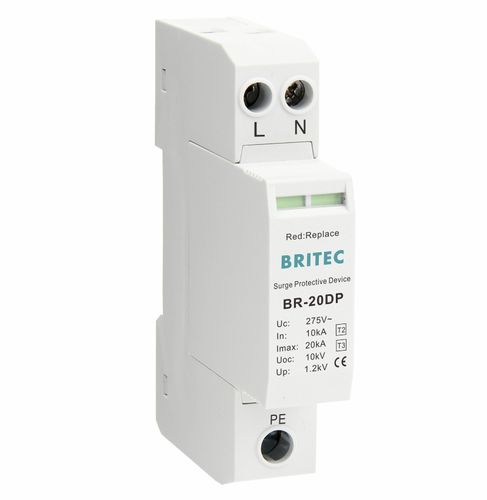

Type 3 surge arrester BR-20DP 2Pclass IIIfor electrical installationselectronic equipment
Add to favorites
Compare this product
Characteristics
- Type
- type 3, class III
- Applications
- for electrical installations, electronic equipment, for electrical networks
- Other characteristics
- low-voltage, with fault indication, compact, varistor, 2-pole, thermoplastic, fast-response, modular, for busbar mounting, AC, single-phase, AC/DC, DIN rail, screw-in, plug-in
- Voltage
30 V, 75 V, 150 V, 275 V
- Primary current
Min.: 10,000 A
Max.: 20,000 A
Description
Surge Arrester
Item No.: BR-20DP 2P
Place of Origin: China
Brand Name: BRITEC
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: Customized packaging
Delivery Time: shipped by 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Pieces per month
DESCRIPTION
Features
• Endurable,sustains thousands of strikes
• Status indication
• LED status indication
• Uc 30V / 75V / 150V / 275V AC can be achieved
• Uc 38V / 100V / 190V / 300V DC can be achieved
• Protection class: Type 3, Class III
• Pole number: 2P, 1+1NPE
• Type 3 surge arrester is installed between LPZ2 and LPZ3
• It can provide protection for equipments
