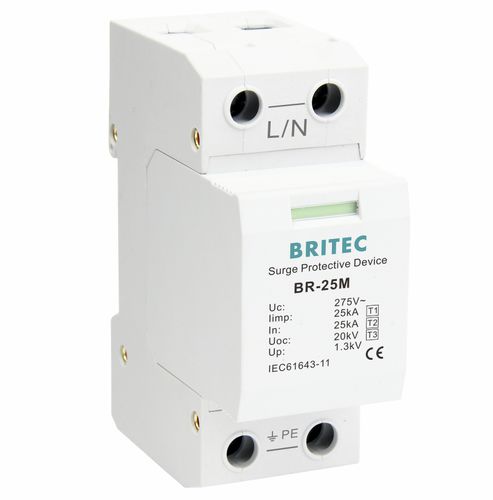

Single-pole surge arrester BR-25M 1Ptype 2type 1type 3
Add to favorites
Compare this product
Characteristics
- Type
- type 2, type 1, type 3, class I, class II, class III
- Applications
- for power supplies, remote signaling, for electrical installations, electronic equipment, electrical line
- Other characteristics
- with fault indication, single-pole, low-voltage, AC, single-phase, DIN rail, fast-response, thermoplastic
- Voltage
275 V
- Primary current
Min.: 25,000 A
Max.: 100,000 A
Description
Features:
· Uoc: 20kV.
· Up: ≤1.3kV.
· Pole number: 1P.
· Multi-stage Status indicator.
· Optimized voltage protection level.
· Degree of protection IP20.
· Protection class: Type 1 + Type 2 + Type 3, Class I + Class II + Class III.
· BR-25M 1P surge arrester is suitable for single phase TN system.
· Standardized 35mm Din rail mounting, compact bistable rail fixed buckle, easy to disassemble.
· Screw terminal connection, tightening force equivalent to twice the standard, make the connection more reliable and safer.
Advantage：
● Large discharge energy.
● High safety coefficient.
● No leakage current.
● Long service life.
● No follow current.
● Strong environmental resistance.
● Modular installation.
Catalogs
BR-25M 1P
1 Pages
