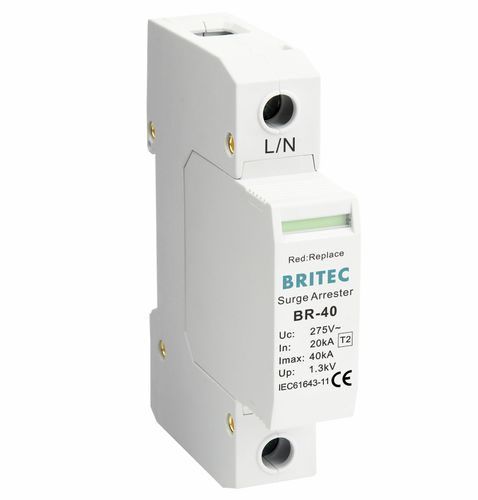

Type 2 surge arrester BR-40 1Pclass IIremote signalingfor electrical installations
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line
- Other characteristics
- modular, with fault indication, compact, single-pole, varistor, universal, thermoplastic, low-voltage, AC, DIN rail, fast-response, plug-in, screw-in
- Voltage
150 V, 275 V, 320 V, 385 V, 440 V
- Primary current
Max.: 40,000 A
Min.: 20,000 A
Description
Features：
Thermal stability 100A without additional protection.
Patented fast tripping mechanism.
SEMKO approval.
Uc 150V / 275V / 320V / 385V / 440V can be achieved.
Protection class: Type 2 , Class II.
Pole number:1P,2P,3P,4P,1+1NPE,3+1NPE.
BR-40 1 pole surge arrester is suitable for TN-S system.
Catalogs
BR-40 1P
1 Pages
