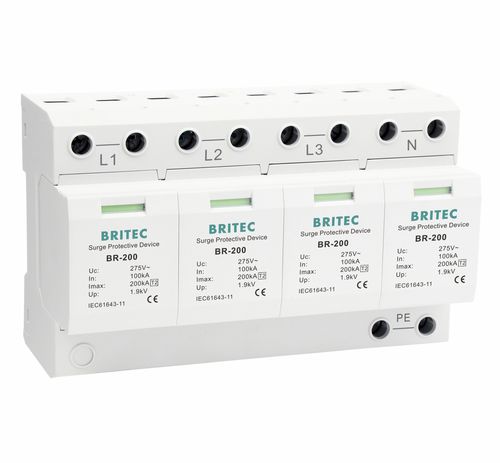

Type 2 surge arrester BR-200 4Pclass IIremote signalingfor electrical installations
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, for electrical control panels
- Other characteristics
- varistor, with fault indication, compact, 4-pole, modular, low-voltage, AC, three-phase, DIN rail, fast-response, plug-in, thermoplastic, screw-in
- Voltage
275 V, 320 V, 385 V
- Primary current
Min.: 100,000 A
Max.: 200,000 A
Description
Features：
– Class II / Type 2 surge protection device.
– Available with nominal / maximum discharge current 100kA/200kA
– The core parts are metal oxide varistor components with high discharge capacity.
– Excellent performance and favorable price
– Low residual voltage and quick response.
– This surge protective device is used for lightning and overvoltage protection in AC50/60Hz.
– Reliable control
– BR-200 series surge protector devices (SPD) are the best products to protect the low voltage power network from lightning or surge over voltage.
– Fault indication via red mark in the inspection window.
