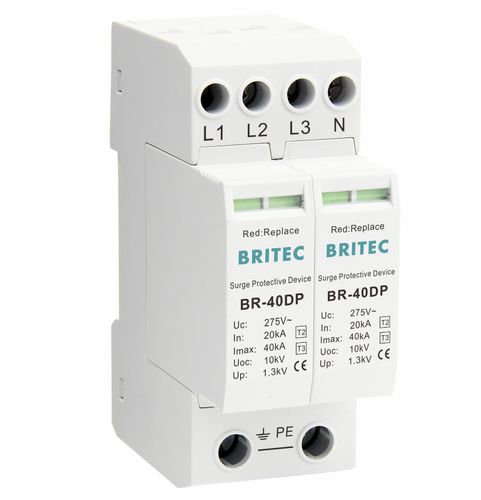

Type 2 surge arrester BR-40DP 4Ptype 3class IIclass III
Add to favorites
Compare this product
Characteristics
- Type
- type 2, type 3, class II, class III
- Applications
- remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, for electrical control panels
- Other characteristics
- varistor, with fault indication, thermoplastic, compact, 4-pole, low-voltage, AC, three-phase, DIN rail, plug-in, screw-in, fast-response
- Voltage
275 V
- Primary current
Min.: 20,000 A
Max.: 40,000 A
Description
Features：
Endurable,sustains thousands of strikes.
Status indication.
LED status indication.
Uc 275V can be achieved.
Protection class: Type 2 + 3 ,Class II + III.

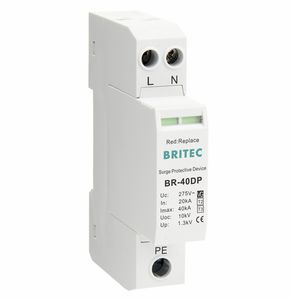

Pole number:2P,4P,1+1NPE,3+1NPE.
Type 2 + Type 3 surge arrester is installed between LPZ1 and LPZ2.
It can provide type 3 protection for equipments which installed within 5 meters from these devices.
Catalogs
BR-40DP 4P BR-40DP 3+1
1 Pages
