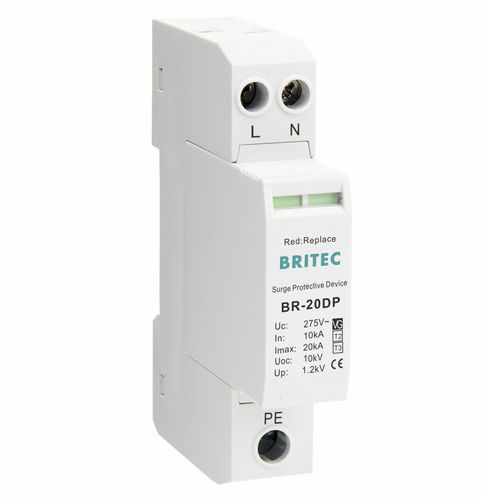

Type 3 surge arrester BR-20DP 1+1class IIIremote signalingfor electrical installations
Add to favorites
Compare this product
Characteristics
- Type
- type 3, class III
- Applications
- remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, for electrical control panels
- Other characteristics
- combined, with fault indication, compact, thermoplastic, DIN rail, plug-in, screw-in, varistor, gas discharge tube, N-PE, modular, fast-response, low-voltage, for busbar mounting, AC, single-phase, AC/DC
- Voltage
30 V, 75 V, 150 V, 275 V
- Primary current
Max.: 20,000 A
Min.: 10,000 A
Description
Features：
Endurable,sustains thousands of strikes.
Status indication.
LED status indication.
Uc 30V / 75V / 150V / 275V AC can be achieved.
Uc 38V / 100V / 190V / 300V DC can be achieved.
Protection class: Type 3, Class III.
Pole number: 2P, 1+1NPE.
Type 3 surge arrester is installed between LPZ2 and LPZ3.
It can provide protection for equipments.
