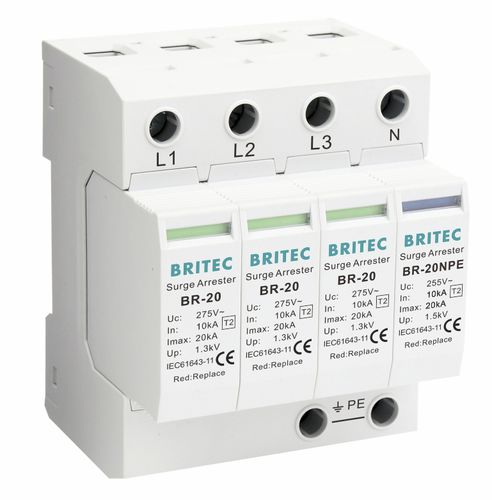

Type 2 surge arrester BR-20 3+1class IIfor power suppliesremote signaling
Add to favorites
Compare this product
Characteristics
- Type
- type 2, class II
- Applications
- for power supplies, remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line, for electrical control panels, anti-surge, for electrical networks
- Other characteristics
- with fault indication, compact, varistor, gas discharge tube, N-PE, modular, three-phase, fast-response, DIN rail, thermoplastic, plug-in, low-voltage, AC
- Voltage
275 V, 320 V, 385 V, 420 V
- Primary current
Max.: 20,000 A
Min.: 10,000 A
Description
Features:
Status indication.
Easy to install Removable.
Protection class: Type 2, Class II.
Endurable, sustains thousands of strikes.
Applicable to low-voltage distribution system.
Uc 275V, 320V, 385V, 420V can be achieved.
Max. current of endure lightning stroke 20kA(8/20us).
Installation:
● The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.
● For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.
● Multiple surge diverters installed in a cascaded approach should be used to ensure adequate protection of the facility.
