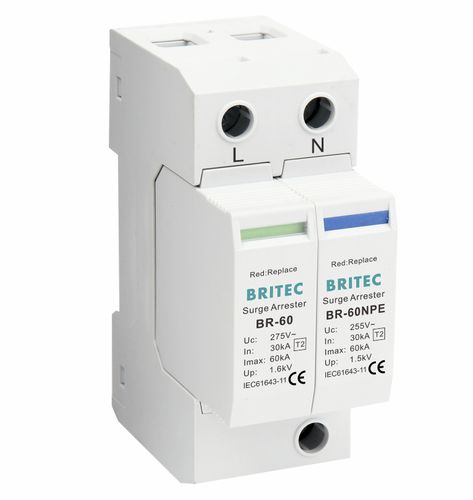

Type 2 surge protection unit BR-60 1+1

class IIfor power supplieselectronic equipment

Features: Type 2 pressure limiting surge protector. Modular structure design. In: 30kA. Imax could reach 60kA. 1P, 2P, 3P, 4P, 1P+N, 3P+N. Protection class: Class II. Comply with IEC61643-11 standard. Endurable, sustains thousands of strikes. Window will display red when fault occurs. Has remote signal interface. High performance varistor with thermal disconnection tripping device. Suitable for AC 50/60Hz, rated voltage up to 380v power supply system. For using in the lightning protection zones concept at boundary 1-2. Easy to install Removable. Plug-in module/base design, facilitate replacement of a failed module without the need to remove system wiring etc. Connected in parallel with the protected device and can be mounted into distribution boards. It is secondary protection devices and applicable to protection against discharge overvoltage occurred by switch-type (8/20 microsecond wave-form) over-currents. Protect to indirect and direct lightning effect or other transient over voltage. Application: ● Protection of terminal devices. ● Protect for sensitive electronic equipment, telecom centers, automatic control centers, intelligent buildings, industrial enterprises, and medical institutes. Advantage: ● Easy to install in any standardized distribution pane or control cabinets. ● Equipped with a thermal disconnection device and provide real-time fault indicators thus allowing complete operational safety.
