Diaphragm pressure switch 700 series
differentialNPT 1/4NPT 1/2

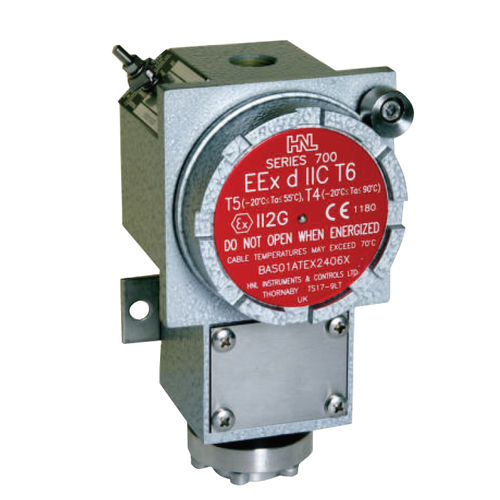

Diaphragm pressure switch - 700 series - British Rototherm Co. Ltd - differential / NPT 1/4 / NPT 1/2
Diaphragm pressure switch - 700 series - British Rototherm Co. Ltd - differential / NPT 1/4 / NPT 1/2
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Pressure type
differential
Process connection
NPT 1/4, NPT 1/2
Fluid
for gas
Material
stainless steel
Protection level
rugged, explosion-proof
Applications
industrial
Other characteristics
adjustable, flameproof
Pressure range

Max.: 600 bar
(8,702.26 psi)

Min.: 16 bar
(232.06 psi)

Switching power: current

2 A, 2.5 A, 4 A, 800 A

Process temperature

Max.: 85 °C
(185 °F)

Min.: -20 °C
(-4 °F)

Description

The Series 700 Pressure and Differential Pressure switches offer accurate, reliable switching in a robust cast enclosure. • Exd, ExnC, ExtD, Exia, I.S. • HIGH OVERLOAD RATINGS • SIMPLE MAINTENANCE • SAFETY VENT RING These switches provide excellent repeatability and long in-service life, under both continuous cycling and overload conditions, due to the mechanical restriction of diaphragm travel. A standard feature of the design is the inclusion of a venting and isolation chamber which (in the unlikely event of the process diaphragm failure) will prevent the process entering the switching enclosure. The setpoint of the switch is adjusted by means of a capstan head screw, located within the lower section of the enclosure. This enables adjustment to be made even when energised, as it does not violate the flameproof integrity of the enclosure. With over 50 pressure and DP ranges and a wide selection of output switches, diaphragm and pressurechamber materials, and process connections (including flanges), Series 700 switches meet the requirements of a wide range of applications. In addition HNL can offer many non-standard options (see back page for details) or customise this product to meet your unique requirements.
