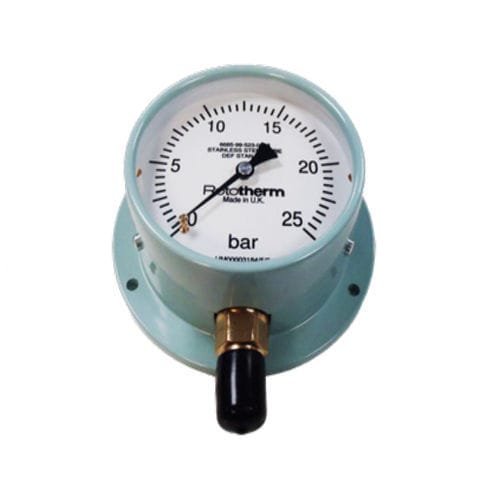

Dial pressure gauge SPGA series

threadedNPT 1/4NPT 1/2

Our SPGA Pressure Gauges are designed for accurate pressure measurement with a reliable, robust design and built for industrial purposes. Also availabe according to Defence Standard 66/2. Nominal Size: 63mm, 100mm and 150 mm or painted in admiralty grey for Def Stan 66/2 Dial: Aluminium, black lettering on white to EN837-1 Window: Safety Glass or Electrical Contact Head Mounting: Direct mount (bottom entry) / Direct mount (rear entry) / Surface mount (direct entry) / Panel Mount (rear entry) Filling: Non-fillable Pointer: Aluminium black. Standard or Micro-Adjustable Wetted Parts: AISI 316 Stainless Steel block & bourdon tube or Monel to NACE MR-01-75 1.6% (±1.6%FSD) for 63 mm / 0.5% Over Range Protection: 1.3 x FSD (130%) Safety Pattern Designation: Full Safety Pattern to European Standard EN837-1 (S3) Weight: Up to 1 kg. Extras: Oxygen Clean and SS Tags
