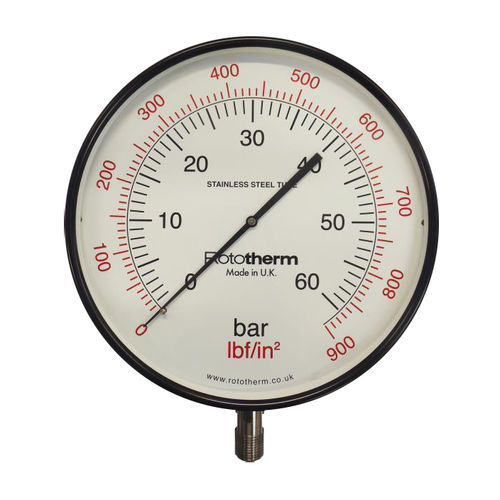

Dial pressure gauge SPGB
threadedNPT 1/2stainless steel

dial pressure gauge
dial pressure gauge
Add to favorites
Compare this product


Characteristics

Display
dial
Mounting
threaded
Process connection
NPT 1/2
Material
stainless steel, aluminum
Technology
Bourdon tube
Protection level
IP65
Applications
process
Other characteristics
precision
Pressure

Max.: 120 bar
(1,740.45 psi)

Min.: 0 bar
(0 psi)

Precision

1 %

Process temperature

Max.: 200 °C
(392 °F)

Min.: -40 °C
(-40 °F)

Description

Our SPGB Pressure Gauges are designed for accurate pressure measurement with a reliable, robust design and built for industrial purposes. Mainly used for pressure measurement in boilers and tanks. Nominal Size: 200mm, 250mm and 300mm Case: Mild Steel case and bezel, painted black Window: Safety Glass Mounting: Surface mount (bottom entry) Filling: Non-fillable Pointer: Aluminium black & Standard Wetted Parts: AISI 316 Stainless Steel block & bourdon tube Over Range Protection: 1.3 x FSD (130%) Safety Pattern Designation: Safety Pattern to European Standard EN837-1 (S2) Weight: Up to 1.8 kg.
