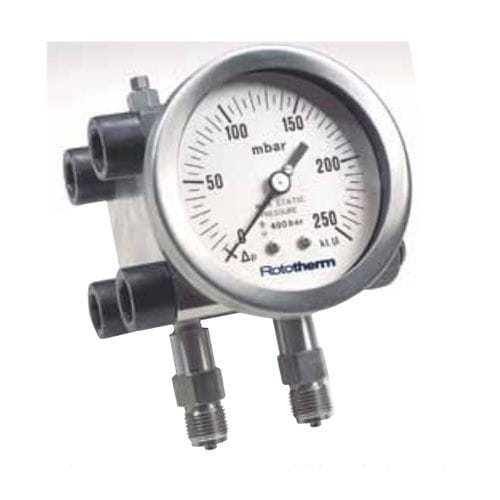

Differential pressure gauge DP3 series

dialNPT 1/2NPT 1/4

A range of economically priced 100mm and 150mm nominal size differential pressure gauges ideally suited to most medium to heavy duty industrial applications where accuracy and durability is required. A choice of mounting options enables simple installation - either direct mounting to the process, in a panel, surface mounting on a wall or with a vertical or horizontal pipe mounting. DP360, DP370 and DP362 instruments are available with electrical contact head options and can be fitted with diaphragm seal units. The DP range of differential pressure gauges is also available with a wide range of options including Monel 400 and Hastelloy C276 wetted parts, oxygen cleaning and liquid filled cases. 3 valve and 5 valve integral and remote mounted manifolds are also available. Nominal Dial Sizes 100 and 150 mm Mounting Options • Direct mounting • Surface mounting with 3 hole back flange • Back panel flush mounting with 3 hole fixing flange • 2” vertical pipe or post mounting
