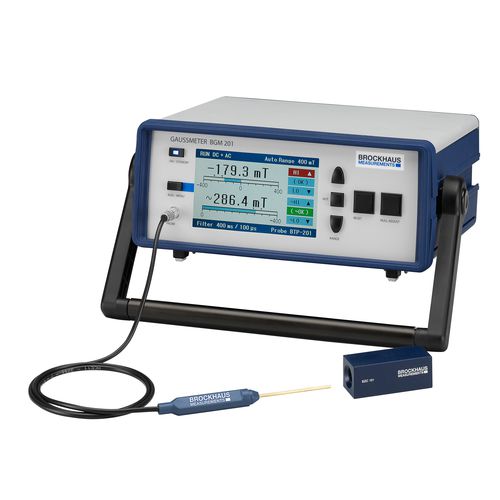

Teslameter gaussmeter BGM 201

portableUSBdigital

• Digital precision Gaussmeter for determining the magnetic field strength of permanent magnets and systems • High accuracy of ± 0.05 % • Measurement of magnetizing pulses up to 30 kHz • Digital filter for AC-measurement with high attenuation • Capacitive touch-screen for user-friendly measurement • Automatic temperature compensation • Application in laboratories and in production lines Operating principle The use of BROCKHAUS Gaussmeter ensures a user-friendly measurement of magnetic fields by using the Hall measurement principle. The measurement of the Hall voltage generated in a Hall sensor behaves proportional to the applied magnetic field. The BGM 201 impresses with its intuitive operation via touchscreen and individually adjustable display views. The results can be displayed in preferred measuring units as Gauss, Tesla, Oersted or A/m. The corrected Analogue output reproduces the exact display value. Similarly, the field and Temperature measurement are recorded via the probe input. All functions can be read or controlled via the front of the device. This measurement technique is used for the testing of magnetic materials in the field of Sensors and Automotive. It is an integral part of the control ongoing production and the production of DC motors.
