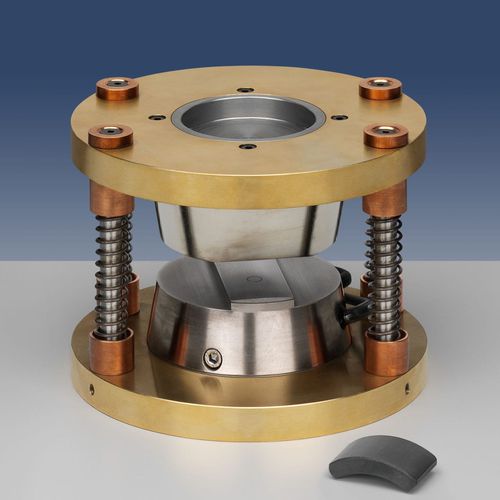

Magnetic measuring head ARC 200

• Determination of magnetical characteristics of permanent magnet segments • Measurement in open and closed magnetic circle • Integrated measuring coils (depending on system) • Values in Wb, Vs, kA/m, Mx, Oe, T, G • MAG-Expert software for control and evaluation • Integration into QM systems Operating principle Customized measuring pole shoes for the determination of magnetical characteristics of permanent magnet segments. Measurement in closed and open magnetic circle (according to “Bosch”- standard) Display of measured values in closed magnetic circle mode: Remanence, coercive field strength, maximum energy product, maximum field strength, maximum polarisation, hysteresis curve. Display of measured values in open magnetic circle mode according to “Bosch”-standard: magnetic flux of sample, demagnetization curve, hysteresis curve. Samples under test will be magnetized up to saturation and, after this, demagnetized according to defined guidelines. Calibration of the system by means of reference magnets or other suitable methods. Software package MAG-Expert for presetting of measuring parameters and evaluation of results.
