Epstein tester Auto-Epstein

for electrical steelindustrialdigital

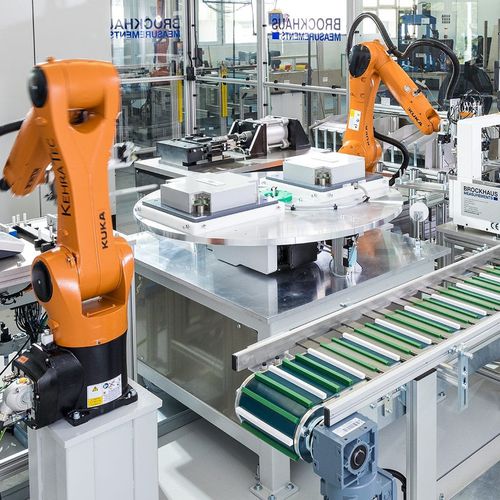

• Fully automated Epstein testing incl. cutting and robotic handling • According to Measuring Standard IEC 60404-2 • 24hrs/day, 365 days/year operation • high repetitive accuracy • BROCKHAUS® MPG Expert software for measurement, presentation and integration into QM systems Operating principle The fully automatic Epstein analyse equipment includes the cutting, transportation of Epstein strips as well as the automatic loading, measuring and unloading of complete sets of Epstein strips into and out of an Epstein frame using the electrical steel tester MPG. Stacking Factor measurement is part of the described system. An output of up to 600 samples per day is possible with . (depending on individual design) All measurements with the MPG are performed under the conditions described in the IEC and other international standards mentioned above to ensure the reproducibility required for the comparison of results obtained with different measuring devices. Therefore all types of equipment control the wave form of the secondary voltage in order to achieve a sinusoidal secondary voltage with a form factor of 1.111 ±1 %: This is necessary to measure magnetic materials under identical conditions. The measuring processes are controlled by highly stable, crystal – controlled digital function generators. This enables a very good frequency and amplitude stability to be achieved which ensures that the BROCKHAUS systems have a high setting accuracy and produce measuring results with a high repetitive accuracy.
