Level control relay MXL-10

voltageSPDTAC

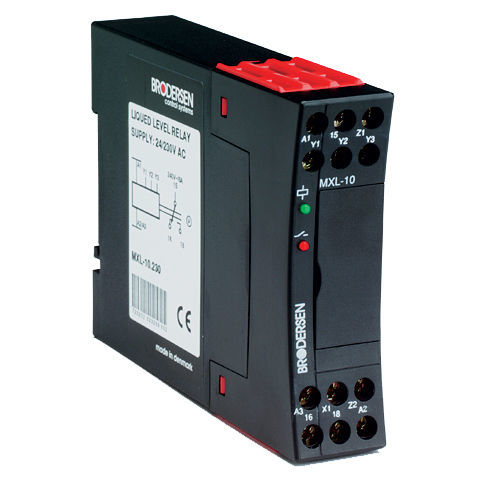

Brodersen's MXL-10 Level relay is a level relay to control one or two levels in a container, with conductive fluids. The relay can either control the pumps or the valves for filling or emptying. The relay can also be used as an overflow fuse or dryflow fuse. This type of level monitoring is characterised by the application of the principle of a cheap and simple detector. A level control relay for most conductive fluids. With a 2 or 3 wire probe, one or two levels in a container can be controlled. The probe is a conducting rod, the length of which can be adjusted to the container and the levels which have to be controlled. To control 1 level (2-wire probes), one of the probes is constantly covered by the fluid and the length of the probe dictates the level. To control 2 levels (3-wire probes), one of the probes is constantly covered by fluid and the length of the two other probes dictates min. and max. levels. As conductivity will differ from fluid to fluid, the sensitivity can be adjusted on the front panel, to adjust the reaction time from the time the actual level is registered, to the relay being energised/deenergised. Features • Monitoring/control of levels of conducting fluids via 2 or 3 wire probes. • Signal at max. and min. level in the same version. • Sensitivity adjustable on input 5 - 50kOhm. • Response time adjustable 0,1 - 5 sec. • Automatic locking (Latch). • Output SPDT. • Supply voltage 24/115VAC or 24/230VAC and 24VDC.
