Voltage monitoring relay MCU-10 series
currenttemperatureAC/DC

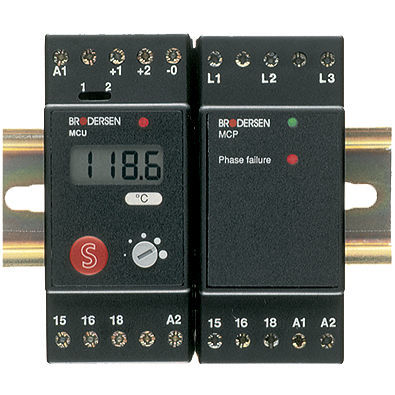

Voltage monitoring relay - MCU-10 series - Brodersen Controls - current / temperature / AC/DC
Voltage monitoring relay - MCU-10 series - Brodersen Controls - current / temperature / AC/DC
Voltage monitoring relay - MCU-10 series - Brodersen Controls - current / temperature / AC/DC - image - 2
Add to favorites
Compare this product


Characteristics

Measured/monitored value
voltage, current, temperature
Network
AC/DC
Mounting
DIN rail, plug-in
Other characteristics
digital
Trigger voltage

Max.: 415 V

Min.: 12 V

Description

The Brodersen MCU Digital Control Relay comes in many variations to cover the entire range of different inputs - MCU-10 DV/AV Digital Voltage Relay - MCU-10 DC/AC Digital Current Relay - MCU-10 P/N/T Digital Thermostat Relay - MCU-10 J/K/S/R Digitak Thermostat Relay - MCU-10 U Digital Process Signal Relay Digital control relay with 3½-digit LCD display. The control relay is used for control and measurement of AC/DC voltage. The actual input signal type and measuring range must be specified when the control relay is ordered. 3½ digit LCD display with selectable read-out of actual input and setpoint. Output relay with LED indication of energized output relay. Built-in power supply for direct mains supply. Galvanic isolation between input and supply. Standardized housing for 11-pole plug-in or DIN rail mounting. Bases for DIN rail,surface and chassis mounting are listed under Accessories for MCP-10, see page 128.
