Process indicator UDC-32

temperaturepositionpower

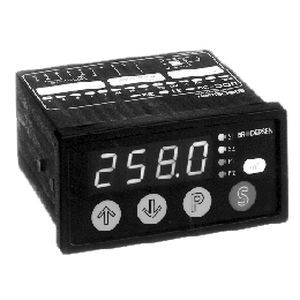

Brodersen's UDC-32 is a digital panel controller with 4 digit LED display. The panel meter is used for monitoring and measurement oF • AC/DC voltage • AC/DC current • Temperature with PT-100/500/1000, Ni-100, Thermistors and thermocouples. The temperature is fully linearised by the built-in micro processor. • Standard Process signals The actual input signal type and measuring range must be specified when the panel meter is ordered. Splash proof front panel with integrated display, LED indicators and 4 button keypad for programming the adjustment. Version avilable with galvanic isolation between input signal and power supply. The panel controller is microprocessor based and fully programmable from the keypad: • Output relay mode selection with 6 different output modes. • Scale minimum/maximum. • Decimal point position. • Setpoint (1 or 2). • Hysteresis (below or above setpoint). • Correction of read-out (in case of deviation between actual measuring value and read-out). • Display update time (0-10.0 sec.). • On delay, output relay 1 & 2 individually (0-100.0 sec.). • Release delay, output relay 1 & 2 individually (0-100.0 sec.). The settings are stored in an EEPROM and accidental change of preprogrammed settings is avoided through the keyboard lock facility. One or two output relays (UDC-32) with LED indication of energized relay. Standardized housing (96 x 48 mm) with plug-in terminals at the rear. Versions with galvanic isolation between input signal and power supply.
