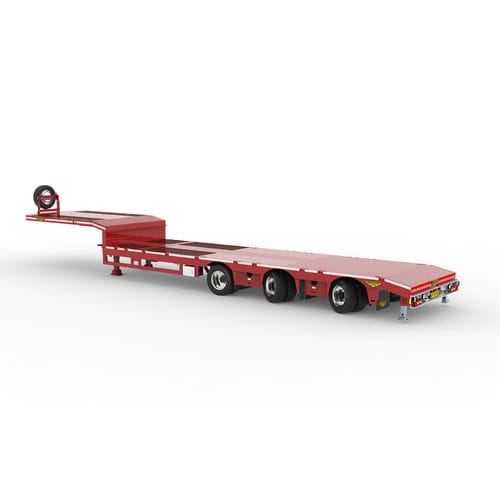

3-axle hydraulic steered semi low loader
Multifunctional and useful for a variety of loads
The 3-axle hydraulically steered semi low loader designed with different axle spacing (wide spread). That gives this trailer a 10 T legal axle load. Other 3-axle semi low loaders only get 9 T per axle. That already gives you 3 T more load capacity with this semi low loader. This 3-axle trailer is built to be able to carry virtually any load. An ideal trailer for your fleet!
The specifications below are for a single extendible 3-axle hydraulically steered semi low loader. As you have come to expect from us, you can also get a 3-axle hydraulically steered semi low loader according to your specifications. Consider for instance ramps, double extendible or wheel wells! We will be happy to help you configure your own semi low loader. You can contact one of our employees for this at any time with no obligation.
General specifications
Single extendible
13 T air suspension (260 mm stroke)
12 T axles (technical)
Hydraulically operated
All lines protected inside the beam
Low maintenance
App. 40,5 T load capacity
Technical specifications
23 T kingpin load
30 T bogie load, technically 48 T
Ca. 12,5 T tare weight
43° steering angle
895 mm bed height (loaded)
Fully automatic alignment system
Remote steering
Low-maintenance steering control system
240 mm high side bar
Chequered plate floor level with the side bar (lower and no corrosion)
Valves in stainless steel cabinet below the side bar
